PERISTALTIČNE male  DOZIRNE ČRPA







PERISTALTIČNE  male  DOZIRNE ČRPALKE
  kislinsko odporne
POVPRAŠEVANJE & CENIK

                                                                                                                               Nazaj na IZDELKI





PH/RX kontrolerji

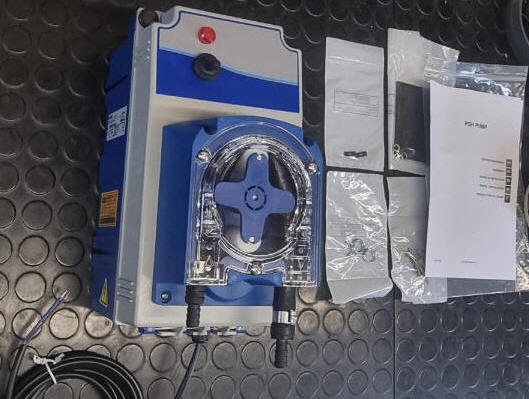

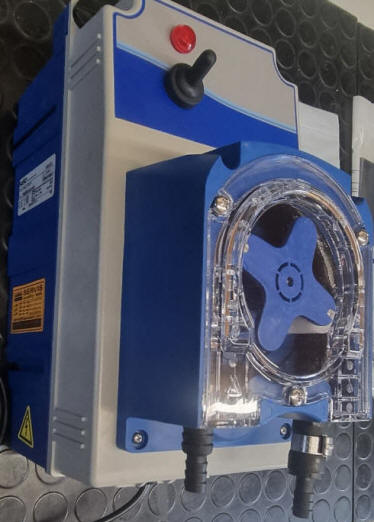

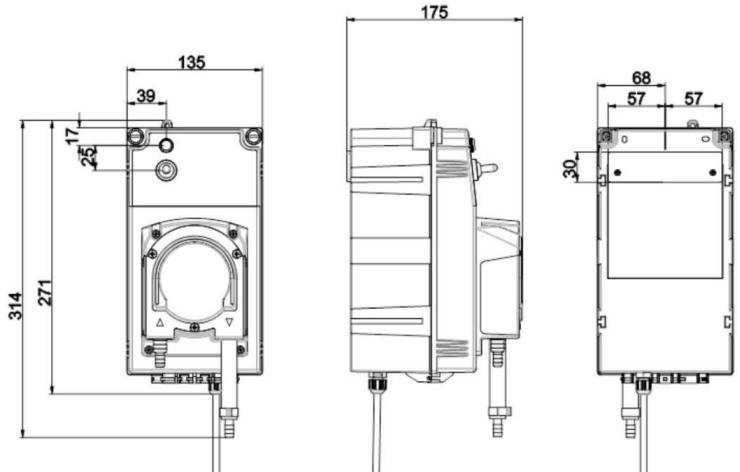

Seko KRONOS peristaltična črpalka gnana s koračnim motorjem.  (STEPPER DRIVE)

Doziranje se prenaša iz vrtečih valjev ki stiskajo cev na ohišje.Pri tem principu črpalke nepovratnih ventilov nima ker to finkcijo prevzame  sama cev.
Princip delovanja zagotavlja nežni način doziranja fluida preko stiskanja cevi.
Ohišje je izdelano iz  kemično odporne plastike PPe z IP65 stopnjo zaščite. Opremljen je z več vhodi za merjenje in nastavitev konfiguracij.
Koračni motor
pomeni, da omogoči obratovanje z konstantno velikimi momenti , pricizno nastavljivostjo in nenehnim nadzorom krmiljenja.


ične aplikacije  v postopkih, kjer so potrebni  le majhni izstopni pretoki, kot so:
- pri doziranju kemikalij v galvanske kopeli
- dezinfekcije, čistilne naprave,pralna tehnika
- pri doziranju  v bazenski tehniki


S tem bi vam radi, da vam predstavimo  značilnosti:
- Visoka točnost dozirana 2 ml / h
- Visok pritisk
3 bar


    KRONOS PDF  PROSPEKT dokument

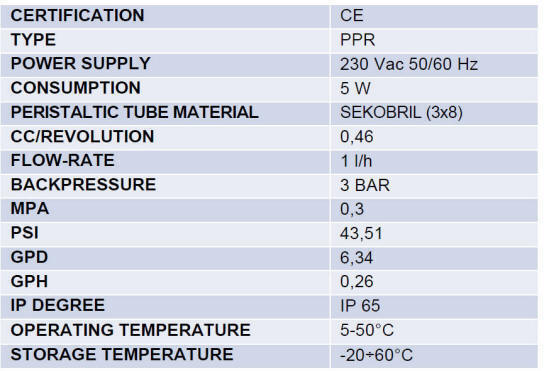

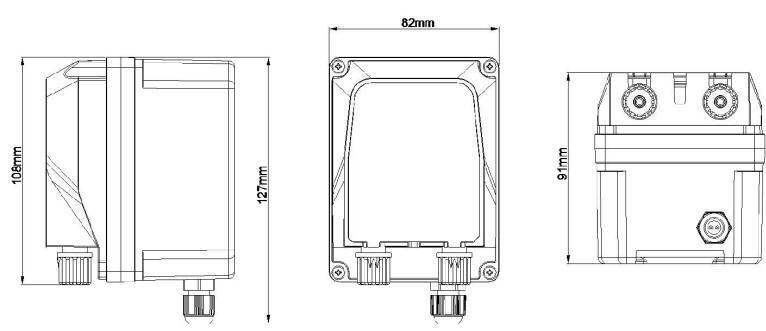

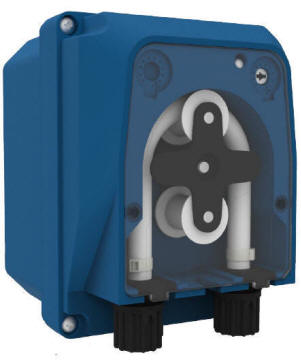

  SEKOperistaltična dozirne črpalka PPR 01


PPR1
0.15 - 1 l/h @ 3 bar, 230 Vac

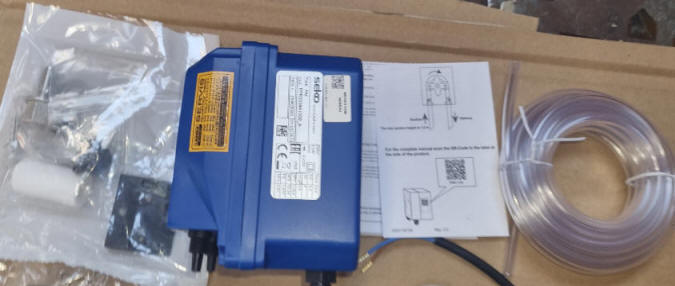

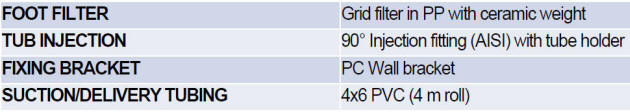

oprema ki je serijsko priložena, cevke sesalna armatura,maticeza cevke,cevke  konzola za stenskomotažo..

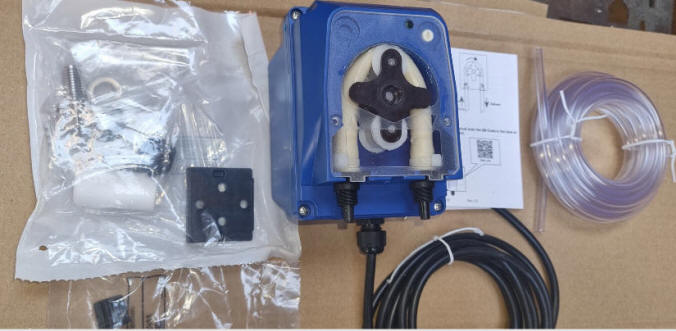

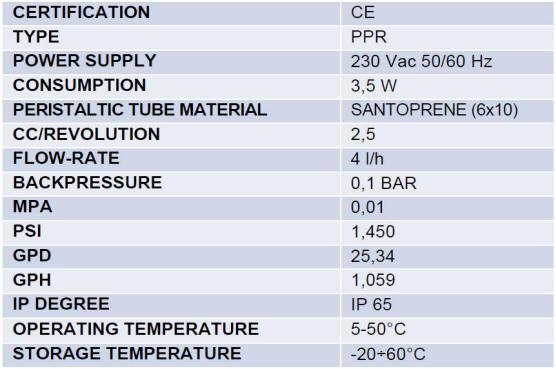

SEKOperistaltična dozirne črpalka PPR 04


PPR04
0.6 - 4 l/h @ 0.1 bar, 230 Vac,
tube: Santoprene

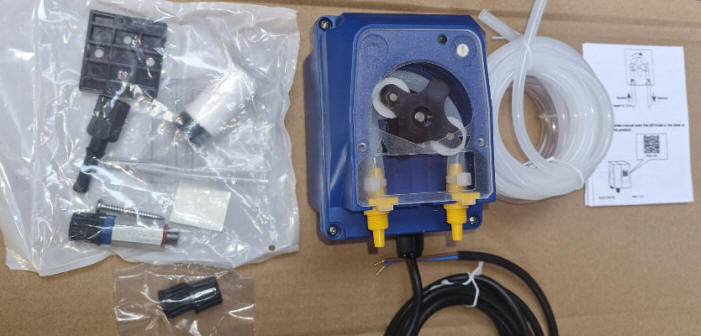

oprema ki je serijsko priložena, cevke sesalna armatura,maticeza cevke,cevke  konzola za stenskomotažo..

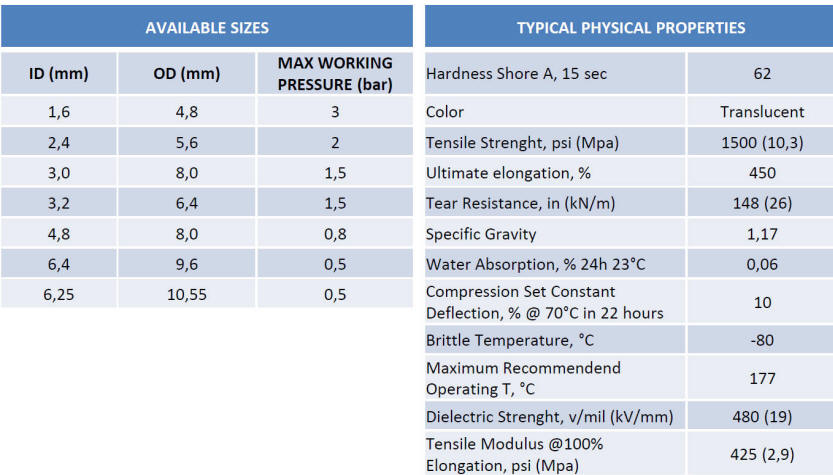

SEKOBRILL PERISTALTIC TUBE

Description: Peroxide-cured Sekobrill Silicone Tubing Formulation is designed for use in applications where flexibility, resiliency and durability are required. Produced from a combination of silicone elastomers, Sekobrill Silicone Tubing optimizes critical physical properties such as tensile strength, elongation and compression set, resulting in a more physically durable product. Its smooth inner surface reduces the risk of particulate entrapment and microscopic buildup during fluid transfer. Sekobrill Silicone Tubing complies fully with the requirements of the USP Class VI Criteria and is entirely non-toxic, non-hemolytic and non-pyrogenic. It also meets 3-A Sanitary Standards, FDA 21 CFR Part 177.2600 Criteria and NSF 51 Standard.

Main Features and Benefits:

Provides Resiliency, Long Life and Durability
Ultra-Smooth Inner Bore Reduces risk of Particulate Entrapment
Taste and Odor Free
Withstands Temperature Extremes From -60°C to 177°C
• Meets USP Class VI and FDA Criteria

Typical Applications:
Veterinary Pharmaceuticals
Respiratory and Anesthesia Equipment
Food and Dairy Processing
Beverage Dispensing
Sterile Filling and Processing

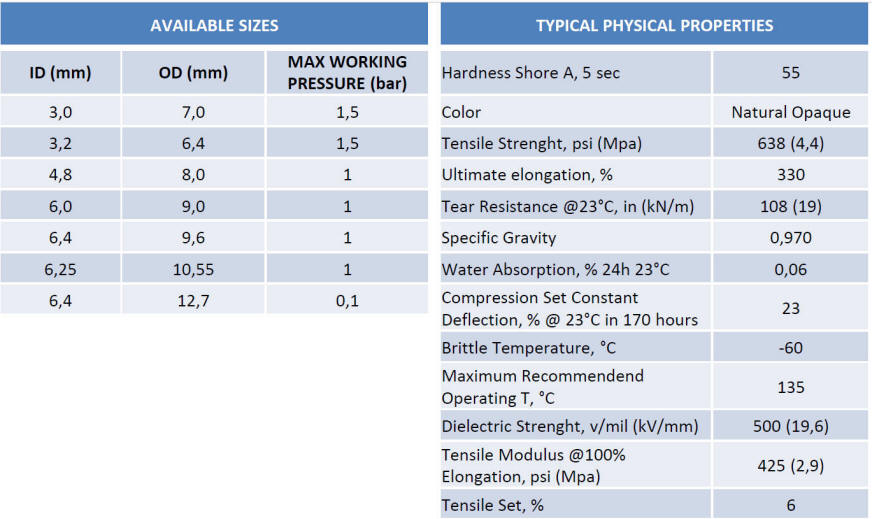

SANTOPRENE® PERISTALTIC TUBE



Description: A colorable thermoplastic general purpose elastomer with good fluid resistance, formulated to replace thermoset elastomers such as EPDM, polychloroprene, and chlorosulfonated polyethylene. It can be processed using injection molding, extrusion, blow molding or other melt processing techniques. It will not weaken or crack after years of exposure to heat and ozone, providing long service in a wide range of applications such as gasketing, abrasion-resistant sleeving and cable insulation.


Main Features and Benefits:
• UL Yellow Card listed, UL 94 HB flame rating
• Continuous temperature rating 1000 hrs. @ 135°C (275°F)
• Excellent flex fatigue resistance
• Excellent ozone and UV light resistance
• Abrasion Resistant
• Excellent resistance to alkaline products
• Low Gas Permeability Versus Rubber Tubing

Typical Applications:
• Soap and Disinfectant Dispensing
• Swimming Pools water treatment
• Caustic Dispensing
• Plating and Etching Chemicals
• Sterile Filling and Processing
